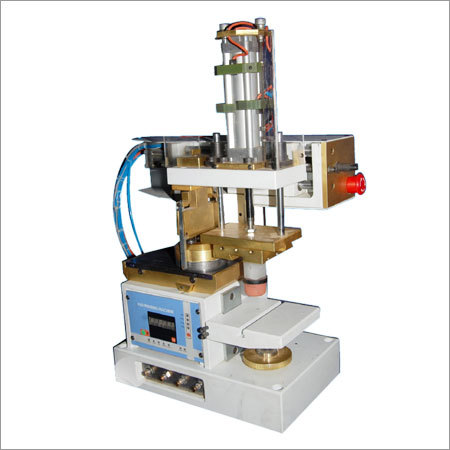

Single Color Pad Printing Machine

Single Color Pad Printing Machine
Single Color Pad Printing Machine
Product Code : 01
Brand Name : NEW VISION MACHINES
Product Description

Single Color Pad Printing Machine

Over 10 year of experience in this domain, we are noted as one of the prominent manufacturers and suppliers of Single Color Pad Printing Machine. These machines are manufactured at our well equipped manufacturing unit using certified quality materials and components. Ideal to use in printing industries for diverse printing applications, we are offering these machines to our clients in varied technical specifications. Unmatched performance, rust proof finish and excellent durability are some of the distinguished features of our Single Color Pad Printing Machine.

Salient features
  • Adjustable worktable with X-Y-Z axis movement
  • Microprocessor control for accurate simple & easy operation
  • Thick ink film by "Inking twice, printing once" process
  • Built-in 5 digit auto counter with battery back-up
  • Gear drive adjustment of worktable for smooth vertical movement
  • Uniquely designed sturdy but light weight body
  • Powder coated covers
  • Sealed Ink-cup avoids evaporation, pollution, splash & saves 50% Ink
  • No thinner or retarder needed for 6-8 hours due to consistent sealed ink concentration
  • No need to remove ink & cleaning of ink-cup after job is finished
  • Doctor Blade stroke and height adjustable
Technical Data
  • Plate Size: 210x100x10mm
  • Max. Printing image: 85mm
  • Max. Printing capacity: 1600 strokes/hr.
  • Control: Electro-pneumatic
  • Control voltage: 24V
  • Electric supply: 110/220V, 50/60Hz.
  • Current Supply: 10W
  • Pneumatic Connection: Working Presser 5-6 bar.

Key Features:

  • Adjustable length of worktable. Adjustment can be made by turning it slightly and crosswise

  • Ink roller is used for applying ink. The roller is simple to clean, install, and uninstall

  • Cup is sealed which means 50% ink saving, no evaporation, no pollution, no splash.

  • Consonant slead ink concentration, which means for 6 to 8 years, no thinner or retarder is required

  • Upon the finishing of work, the ink may not be removed and the ink cup may not be cleaned.

  • Ink cup has unique edge structure which ensures high efficiency & vivid ink scraping, giving a very good print

  • Doctor blade height and stroke are adjustable for scraping the ink clean



NEW VISION MACHINES
Plot No. 53. Shastri Nagar Industrial Area, (On Dwarka Expressway) Daultabad Raod,Gurgaon - 122001, Haryana, India
Mr. VIJAY CHOWDHARY (G.M. Tech)
